    MTM41

    MTM41

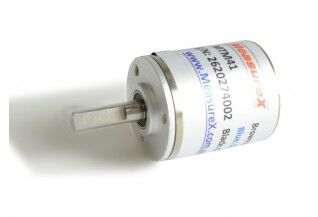

    Non-Contact Rotary Sensor
    MTM41 is a non-contact absolute magnetic tilt and rotary angle sensor with a linear measuring range of 5° to 355°. Thanks to the non-contact technology, these sensor offers high accurate wear-free absolute rotary angle measurement. This compact sensor provides analog output of
    4-20mA, 0-5V or 0-10V which is compatible with most PLCs and industrial control systems. Its Stainless Steel or Aluminium body and IP67 rating makes it ideal for harsh environments and applications with vibration, dust, moisture and chance of water splash.
    While the standard Precision is 1% FS, you can optionally get a precision of 0.5% FS. A high resolution of up to 0.1° and a short response time of less than 3ms, allows precise control of complex and dynamic operations with MTM41. The robust construction of MTM41 with its high performance makes it ideal for demanding long term applications
    Get A Quote
    • Technical Specification
    • Features
    • Applications
    Angle 360
    Compensated Temp. Range 0 to 60°C
    Technology Non Contact
    Accuracy (combined LRH) 0.5% FS, 1% FS
    Rotational life 5 x 10^6
    Output Signal 4-20mA, 0-5VDC, 0-10VDC
    Protection Level IP67
    Operating Temp. Range -20 to +80°C
    Temp. Coefficient of Span 0.025% FS /°C
    Temp. Coefficient of Zero 0.01% FS/°C
    Electric Connection 1m cable

    360° Absolute Position Measurement
    Suitable for harsh environments
    High Resolution (0.1°) and Accuracy (1%FS)
    IP67 rated Non-contact Technology with Long Life Cycle
    Analogue output of 4-20mA, 0/5V or 0/10V

    Marine hand throttle position
    Inboard/ outboard tilt and rotation
    Agricultural equipment motion
    General industrial equipment
    Quarter-turn valves
    Fuel dampers
    Throttle position
    Fuel rack position
